Axle
Shafts:The backbone of industrial power transmission

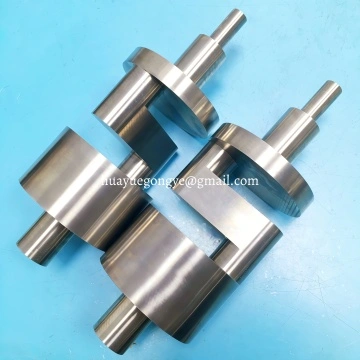

As indispensable mechanical elements, shafts serve three core functions: torque transmission,rotarycomponent support (e.g.,gears, bear ings, sprockets), and positional accuracyma intenance in dynamic systems.Huayue Industrial Technology (Dongguan) Co., Ltd., a seasonedprecisionshaft manufacturer, leverages decades ofmachining expertiseto produce shafts that excel in harsh industrial environments-from hi gh-load automotiveassemblies to micro-precision medicaldevices. Our commitment to CNC-driven precision and material scienceoptimization ensureseach shaft meets or exceeds global performance standards.
Advanced Machining TechnologiesRedefining Precision Limits
Our manufacturing ecosystem integrates cutting-edgeequipment and proprietary processes to deliver unmatchedshaft quality:CNCTurniCenters:Equipped with Fanuc 31i-Bcontrol systems, our 5-axis CNC lathesachieve contour turning with 0. 0005mm positional accuracy, supportingcomplex features Iike tapered sections, multiple threadstarts (ACME, metric, UNC), and undercut Grinding SystemsGerman-made Studer cylindrical grinders enable super-finishing (Ra 0. 012pm) and runoutcontrol (0. 001mm),critical forhigh-speed rotating shafts in aerospace and robotics. Heat Treatment Lines: Automated quenching-tempering furnaces(compliant with AMS 2750E) and low-pressure carbur izing (LPC) equipment enhance material hardness (up to HRC 65)extending shaft service Iife by 30%+.
extending shaft service 1ife by 30%+t. Subtractive & Additive Hybrid Processes: For intricategeometries, we combine CNC milling with EDM(Electrical Discharge Machining) to create precision features likeinternal splines and cross-drilled holes without material deformation. Process Val idation; Each machining routeundergoes DFMEA (Design Fai lure Mode and Effects Analysi5)and SPC (Statistical Process Control) to ensure batchconsistency-even for high-volume orders (1M+units/year).
Full Spectrum of Shaft Solutions'From Standard to Custom
We cover the entire range of shaft configurations,addressing diverse industry needs with tai loredspecifications:

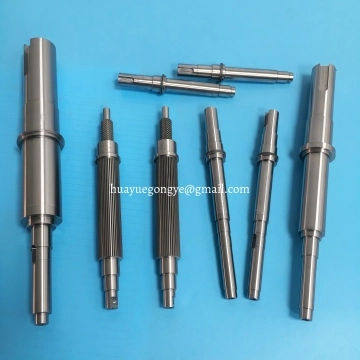

| Shaft Category | Technical Specifications | Target Industries |
| Power TransmissionShafts | Diameter:10-200mm; Length: 50-3000mm;Torque rating: Up to 5000 N .m | Automot ive, heavy machinery, mar ine |
| PrecisionMini-Shafts | Diameter: 0. 5-10mm; Concentricity:0.002mm; Material: Titanium al loy,alumina ceramic | Medical devices, electronics,watchmaking |

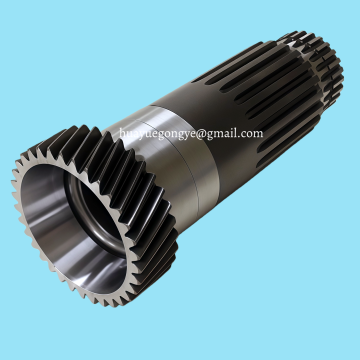

| Spline Shafts | Spline type: Involute (30, 45);Nunber of teeth: 4-60; Module: 0.5-5mm | Agr icultural machinery, gearboxes |

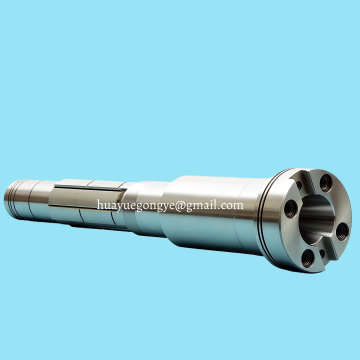

| Flanged Shafts | Flange diameter: 15-150mm; Bolt circledi ameter (BCD):20-120mm | Electric motors, pumps |
| Custom EngineeredShafts | CAD/CAM support for 3D models (STEP,IGES)Prototyping lead time:2-3 days | Specialized industrial equipment |

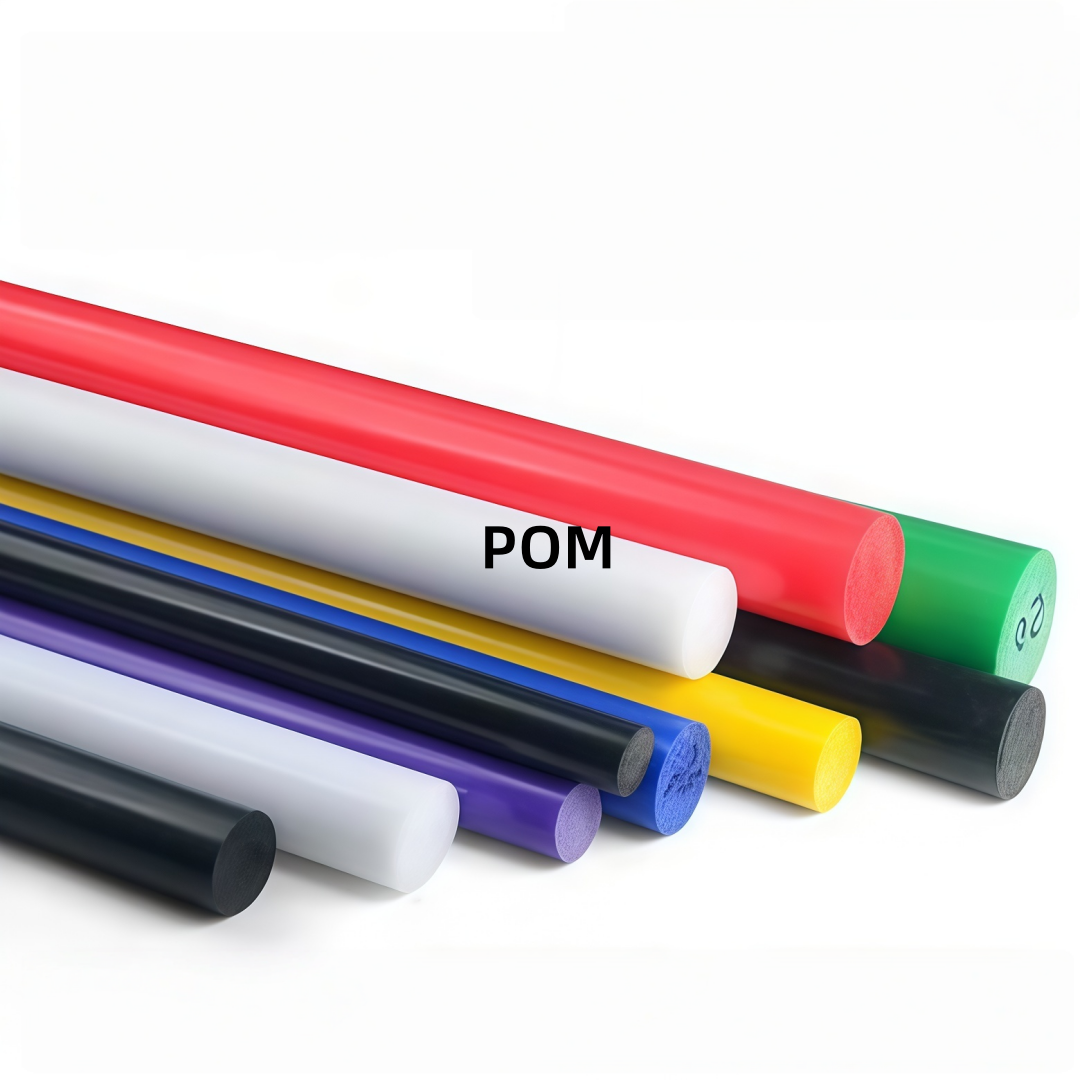

Material Portfol io: Carbon steel (1018, 1045, 4130),alloy steel (4140, 4340, 8620), stainless steel (303, 316L, 17-4PH), superalloys(Inconel 718, Hastel loy C276), and engineering plastics (PEEK, Pom.Surface Treatiments: Electroless nickel plating (ENp, 5-25 um), hardchrome plating (0.5-5um), passivation (ASTM A967), and PIFE coating (for low-friction applications).
Quality Assurance Meeting Global Standards
Our QA system adheres to strict international certifications, ensuringzero-defect delivery: Inspection Equipment: Zeiss Contura CMM (measurementaccuracy: #0.0003mm), Mitutoyo optical comparator (magnification:10-500x),Rockwell/Brinel| hardness testers, and eddy current testing(ECT) forsurfaceflaw detection.
Compliance Certifications: IS0 9001:2015, IATF 16949:2016(automotive), AS9100D (aerospace), and RoHS 2. 0 (electronics). TraceabilitySystem: Each shaft is marked with a unique serial number, Iinking to rawmaterial certificates, process records, and inspection reports-accessiblevia our online customer portal.
PARTNER WITH HUAYUE
Your Global Shaft Machining Expert We offer end-to-end support for international clients:
Engineering Collaboration: Our team of 12+ mechanical engineers provides DFM (Designfor Manufacturability) reviews to optimize shaft designs for cost and performance.Logistics Solutions: Export packaging (wooden crates, anti-vibration foam) compliantwith ISPM 15; shipping via DHL, FedEx, or sea freight with customs clearance assistance. After-Sales Service: 12-month warranty on alI shafts; technical troubleshootingvia video call or on-site support (for major clients).
