Medical consumables

Medical Consumables: Custom Hair Transplant Supplies & Skin Biopsy Devices

As a professional hardware parts manufacturer specializing in medical-grade precision components, we focus on manufacturing high-performance hair transplant consumables and skin biopsy devices—engineered to meet strict clinical standards for safety, biocompatibility, and 微创 (minimally invasive) precision. Our core capability lies in drawing-based customization (accepting 2D formats: DWG/DXF/PDF with GD&T; 3D formats: STEP/IGES/STL), enabling us to tailor every product to your specific clinical needs: instrument compatibility, patient comfort, and diagnostic accuracy. All products comply with global medical regulations (ISO 13485, FDA 21 CFR 820, CE MDR) and use biocompatible materials (medical-grade 316L stainless steel, tungsten carbide) to ensure safety for both clinicians and patients.

Premium Sapphire Surgical Scalpel for FUE Hair Transplant

Crafted from high-purity single-crystal synthetic sapphire (Mohs hardness 9, second only to diamond), the blade delivers an ultra-sharp, smooth cutting edge that maintains consistent sharpness for thousands of incisions. Its slim V-shaped micro-tip enables controlled angle, depth, and direction—critical for natural hairlines, optimal graft survival, and maximum density.

1. Custom Hair Transplant Consumables

1.1 Hair Transplant Blades

Key Specifications & Customization

• Materials:

• Medical-grade 316L stainless steel: Corrosion-resistant, easy to sterilize, and compatible with most clinical workflows.

• Tungsten carbide (WC): For high-volume clinics—offers 5× longer sharpness retention than steel (maintains edge for 500+ follicle extractions vs. 100+ for steel).

• Design Customization:

• Edge Geometry: 30° (fine FUE entry points), 35° (balanced FUE/FUT use), 45° (FUT donor strip incisions)—edge radius ≤0.003mm (verified via laser interferometry).

• Dimensions: Length 5mm–15mm (matched to handheld FUE pens/automated tools like Artas), thickness 0.1mm–0.2mm (optimized for scalp tissue penetration).

• Handle Interface: Press-fit shafts, luer lock, or custom-threaded bases (M2–M4) to fit your existing instrument handles (Bernstein, Hi-Tech, or proprietary tools).




  Clinical Performance:

• Surface Finish: Polished to Ra ≤0.03μm—reduces tissue adhesion and post-op inflammation.

• Sterilization Compatibility: Withstands 100+ cycles of autoclaving (134°C/30 mins) or ethylene oxide (EO) sterilization—no material degradation.

Application Case

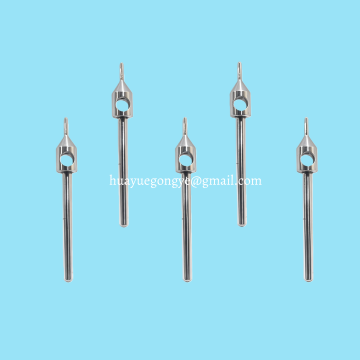

1.2 Follicle Extraction Punches

Key Specifications & Customization

• Materials:

• Medical-grade 316L stainless steel (standard) or fine-grain tungsten carbide (high-wear needs)—both ISO 10993-5 compliant (cytotoxicity-free).

• Design Customization:

• Inner Bore Diameter: 0.6mm–1.2mm (matched to follicle size: 0.6mm for fine hair, 1.2mm for thick/curly hair)—tolerance IT4 (±0.001mm) to ensure consistent follicle fit.

• Bore Profile: Tapered (1°–2° internal taper) for smooth follicle removal, or straight (for rigid scalp areas)—inner surface polished to Ra ≤0.02μm to protect follicle roots.

• Length: 10mm–20mm (optimized for different scalp thicknesses: 10mm for thin scalps, 20mm for thick/cushioned scalps).

• Clinical Advantage:

  Our punches enable 98%+ follicle survival rates by minimizing mechanical trauma—critical for patient satisfaction and repeat business.

1.3 Hair Implantation Needles

Key Specifications & Customization

• Tip Design: Blunt-tipped (prevents follicle cutting) or semi-sharp (for dense scalp tissue)—customizable bevel angle (15°–30°).

• Dimensions: Outer diameter 0.8mm–1.4mm, length 12mm–25mm—compatible with manual implantation forceps or automated tools.

• Material: Medical-grade 316L stainless steel with passivation treatment—enhances corrosion resistance and biocompatibility.

2. Custom Skin Biopsy Devices

Skin biopsy requires accurate tissue sampling with minimal scarring—our devices are engineered for dermatologists, pathologists, and cosmetic clinics, focusing on precision, ergonomics, and diagnostic reliability.

2.1 Skin Biopsy Punches

Key Specifications & Customization

• Materials:

• Medical-grade 316L stainless steel (standard) or tungsten carbide (for high-volume clinics)—both offer excellent edge retention and resistance to skin acids.

• Design Customization:

• Diameter: 1mm–8mm (1mm–3mm for small lesions, 4mm–8mm for larger/malignant-suspect lesions)—tolerance IT5 (±0.002mm) for consistent sample size.

• Depth Control: Fixed-depth (2mm–6mm) or adjustable-depth (via collar) designs—prevents over-penetration into subcutaneous tissue.

• Handle: Ergonomic knurled grip (diameter 8mm–12mm) for non-slip control—critical for precise placement on curved skin surfaces (face, limbs).

• Clinical Performance:

• Cutting Edge: Razor-sharp (edge radius ≤0.005mm) for clean tissue separation—reduces sample fragmentation and improves diagnostic accuracy.

• Sterilization: Autoclavable (134°C) and compatible with EO/gamma radiation—no rust or edge dulling after 50+ cycles.

2.2 Skin Biopsy Forceps & Sampling Needles

Key Specifications & Customization

• Biopsy Forceps:

• Jaw Design: Serrated (for secure tissue grip) or smooth (for delicate skin)—jaw size 2mm–10mm (customizable for lesion size).

• Material: Medical-grade 316L stainless steel with spring-loaded mechanism—ensures consistent jaw pressure and reduces hand fatigue.

• Core Biopsy Needles:

• Gauge: 18G–25G (18G for deep tissue, 25G for superficial lesions)—length 5mm–15mm.

• Tip Design: Franseen (for soft tissue) or Tru-Cut (for firm lesions)—customizable to your clinic’s biopsy protocol.

3. Our “Drawing-Based Customization” Process

Step 1: Drawing Submission & Clinical Consultation

• Share your 2D/3D drawings or clinical requirements (e.g., “FUE punch compatible with Artas 9x machine,” “4mm biopsy punch with 3mm depth stop”).

• Our engineering team reviews:

• Compatibility with your existing instruments (e.g., handle diameter, connection type).

• Clinical feasibility (e.g., minimum needle gauge for pediatric use, blade thickness for sensitive scalp).

• Deliver a technical quote + DFM (Design for Manufacturability) report within 24 hours.

Step 2: Prototype Development

• Produce 1–5 prototypes using precision CNC machining (for steel components) or diamond grinding (for tungsten carbide parts).

• Inspect prototypes with:

• CMM (accuracy ±0.0005mm) for dimensional compliance.

• Optical profilometer for surface roughness (Ra) testing.

• Biocompatibility pre-testing (ISO 10993-5) for medical-grade materials.

• Ship prototypes + inspection reports for your clinical validation (5–7 days lead time).

Step 3: Mass Production & Quality Control

• Scale up with automated machining lines—ensure batch consistency (tolerance variation ≤0.002mm).

• 100% inspection for critical features:

• Blade edge sharpness (laser edge tester).

• Biopsy punch depth accuracy (calibrated gauges).

• Sterilization validation (ISO 11135 for EO, ISO 11134 for autoclaving).

Step 4: Delivery & After-Sales Support

• Packaging: Sterile blister packs (ISO 11607 compliant) with batch/lot numbering for traceability.

• Documentation: CoC (Certificate of Conformance), MTR (Material Test Report), and sterilization validation certificates.

• Warranty: 12-month warranty—free replacement if devices fail due to manufacturing defects; technical support for instrument integration.

4. Quality Assurance & Compliance

• Certifications: ISO 13485 (medical device quality management), FDA 21 CFR 820, CE MDR (Class I/II medical devices).

• Material Compliance: Medical-grade 316L stainless steel (ASTM F138), tungsten carbide (ISO 3325)—both ISO 10993-5/-10 compliant (no cytotoxicity/irritation).

• Testing: Routine tests include corrosion resistance (ASTM B117 salt spray), sharpness retention, and sterilization durability.

5. Why Choose Our Medical Consumables & Devices?

1. Clinical-Centric Design: We collaborate with dermatologists and hair transplant surgeons to optimize tools for real-world clinical use—not just manufacturing.

2. Ultra-Precision: Achieve IT4–IT6 tolerances, Ra ≤0.02μm surface finish, and edge radius ≤0.005mm—critical for minimally invasive procedures.

3. Custom Flexibility: Tailor every feature (size, shape, interface) to your instruments or proprietary workflows—no “one-size-fits-all” solutions.

4. Compliance & Traceability: Full documentation for regulatory audits; batch/lot tracking for post-market surveillance.

5. Fast Turnaround: Prototypes in 5–7 days, mass production in 10–20 days—faster than industry averages for medical device customization.
